Linear Regression Examples

This tutorial is derived from https://www.datacamp.com/community/tutorials/linear-regression-R

8.7 Active Libraries

library(ggplot2)
library(cowplot)
library(readxl)

8.8 Linear Regression

R-studio provides the ability to create linear regressions easily, sometimes too easily. While this is not meant to be a substitute for a statistics course, the objective in this short tutorial is to develop a workflow approach that allows you to test the validity of regressions.

8.9 Assumptions

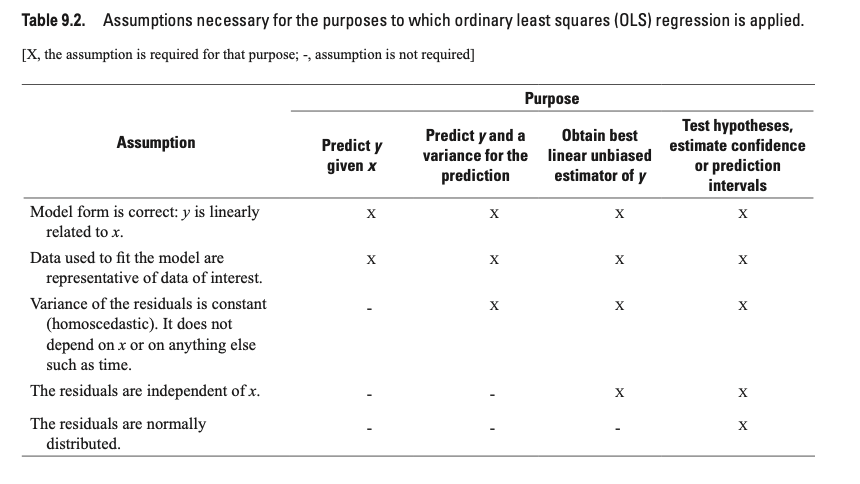

Below is a figure from https://pubs.usgs.gov/tm/04/a03/tm4a3.pdf.

alt text here
alt text here

8.9.0.1 Workflow:

  1. Read in data
  2. Plot data & visualize linearity
  3. Transform data as appropriate
  4. Create linear model using lm function. * Assess assumption 1
  • review t-values from linear model summary. If the slope and intercept values have resulting |t| > 2, then they are significant.
  • review leverage/influence of data points on regression. When data points have high leverage, one of 3 options come into play: (1) Someone made a recording error, (2) Someone made a fundamental mistake collecting the observation; or (3) The data point is perfectly valid, in which case the model cannot account for the behavior
  1. Test for homoscedasaticity * Assess assumption 3, the variability in the residuals does not vary over the range of predicted values
  • if fails, transform data or choose an alternate model/independent variable
  1. Test for bias * Assess assumption 4, e values generally plot equally above and below zero
  2. Test for normality

8.10 Example

8.10.1 Step 1. Read in data

S <- c(1.3, 1.8, 3, 4.5, 6, 8, 9)
v <- c(.07, .13, .22, .275, .335, .35, .36)
data.ex <- data.frame(S,v)

8.10.2 Step 2. Plot data & visualize linearity

## here you can either start a ggplot or just use the simple plot command. Since we're practicing ggplot, let's stick with this.
p <- ggplot(data.ex, aes(S,v)) + geom_point() +
  cowplot::theme_cowplot() + # adds theme
  scale_y_continuous(breaks=seq(0,0.8,.2)) + # changes scale to min and max with prescribed spacing
  scale_x_continuous(breaks=seq(0,9,1)) +
  ylab("v") + # adds y-label with units
  xlab("[S]")

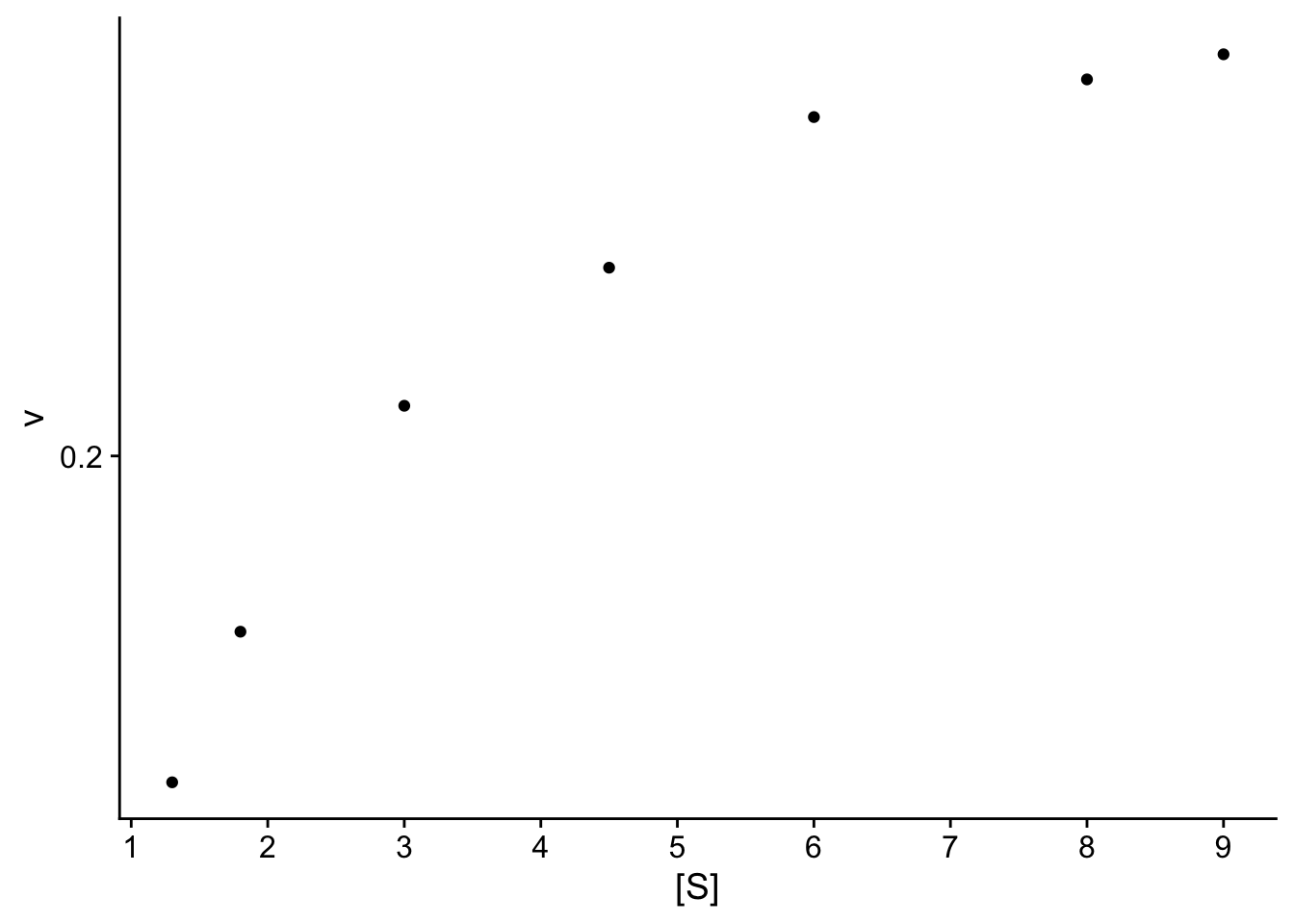

p

We can also add a linear model ontop of this plot.

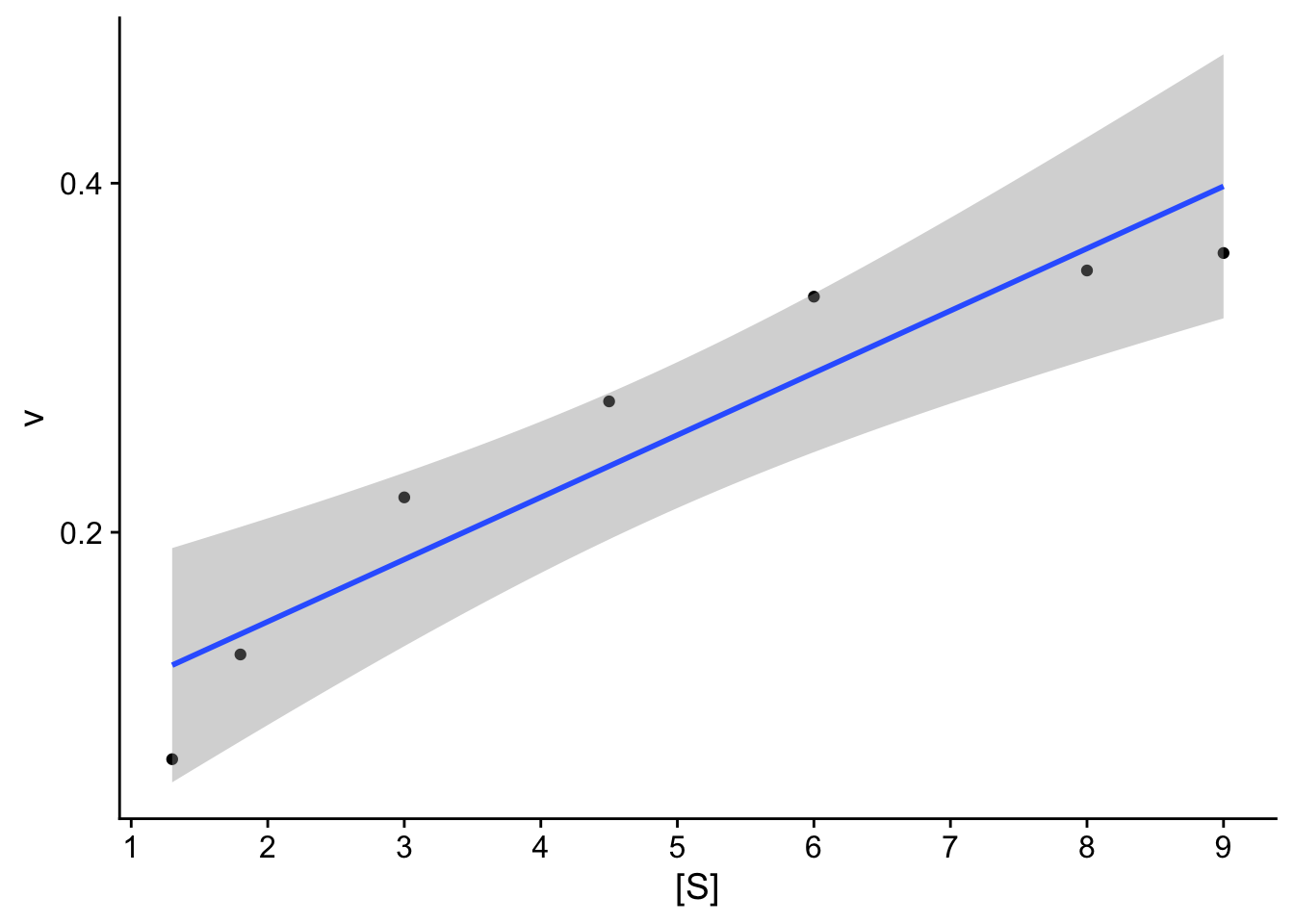

p + geom_smooth(method = "lm")
## `geom_smooth()` using formula = 'y ~ x'

Check: The resulting plot does not look linear. We will compare 2 transformations:

8.10.3 Step 3. Transform data

data.ex$vt <- 1/data.ex$v
data.ex$St <- 1/data.ex$S
# TODO remove 2nd order here and add actual Michaelis-menten equation and actual linearization examples
data.ex$S2t <- 1/data.ex$S^2

8.10.4 Step 4. Linear model

Create linear model using lm function.

  • Assess assumption 1
  • review t-values from linear model summary. If the slope and intercept values have resulting |t| > 2, then they are significant.
  • review leverage/influence of data points on regression. When data points have high leverage, one of 3 options come into play: (1) Someone made a recording error, (2) Someone made a fundamental mistake collecting the observation; or (3) The data point is perfectly valid, in which case the model cannot account for the behavior
# Create linear model, 1st order Michaelis Menton
model.lm <- lm(formula = vt ~ St, data = data.ex)
summary(model.lm)
##
## Call:
## lm(formula = vt ~ St, data = data.ex)
##
## Residuals:
##        1        2        3        4        5        6        7
##  1.47839 -1.61027 -1.11218 -0.19880  0.06114  0.61664  0.76508
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   0.1902     0.7762   0.245 0.816147
## St           16.4022     1.9435   8.440 0.000383 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1.185 on 5 degrees of freedom
## Multiple R-squared:  0.9344, Adjusted R-squared:  0.9213
## F-statistic: 71.23 on 1 and 5 DF,  p-value: 0.0003833
vm <- 1/model.lm$coefficients[1]
ks <- vm*model.lm$coefficients[2]
vm
## (Intercept)
##    5.256963
ks
## (Intercept)
##    86.22596

Check: |t-values| < 2 for intercept, questionable.

When vm is calculated, it’s a lot higher than reported velocities, and the half-saturation constant ks is higher than the maximum substrate concentration.

# review leverage/influence of data points on regression. Use plot of Cook's D, evaluate subset of CooksD above threshold, and evaluate DFFITS (another influence diagnostic)

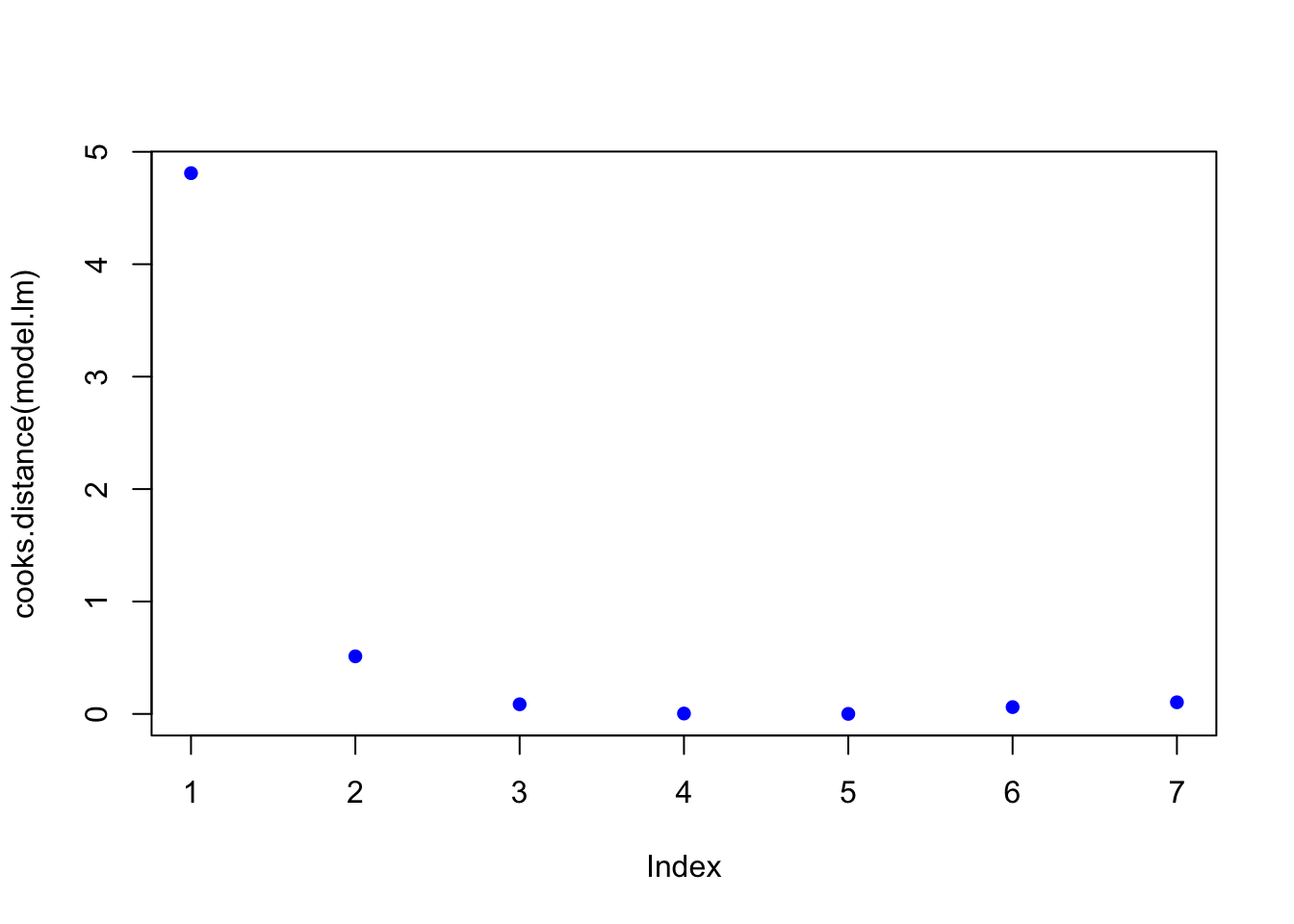

plot(cooks.distance(model.lm), pch = 16, col = "blue") #Plot the Cooks Distances.

n <- length(model.lm$residuals)
p <- length(model.lm$coefficients)
subset(cooks.distance(model.lm), cooks.distance(model.lm) > qf(0.1, p, n - p, lower.tail = FALSE)) # determines if there are any flagged observations from CooksD
##        1
## 4.809895
subset(dffits(model.lm), dffits(model.lm) > 2 * sqrt(p / n)) # determines if there are any flagged observations from DFFITS
##        1
## 11.80479

For simple linear regression with more than about 30 observations, the critical value for Di would be about 2.5.

qf(0.1, 2, 30 - 2, lower.tail = FALSE)
## [1] 2.502761

In the example above, observation 1 was identified as having higher influence for both Cooks and DDFITS. Consider options 1-3 described in workflow, but also intercept was questionable.

8.10.5 Step 5. Test for homoscedasaticity

# Here, the which variable provides the ability to create 4 plots of interest: "Residuals vs Fitted", "Normal Q-Q", "Scale-Location", "Cook's distance", "Residuals vs Leverage"

# To test for homoscedasaticity, review plot of standardized residuals

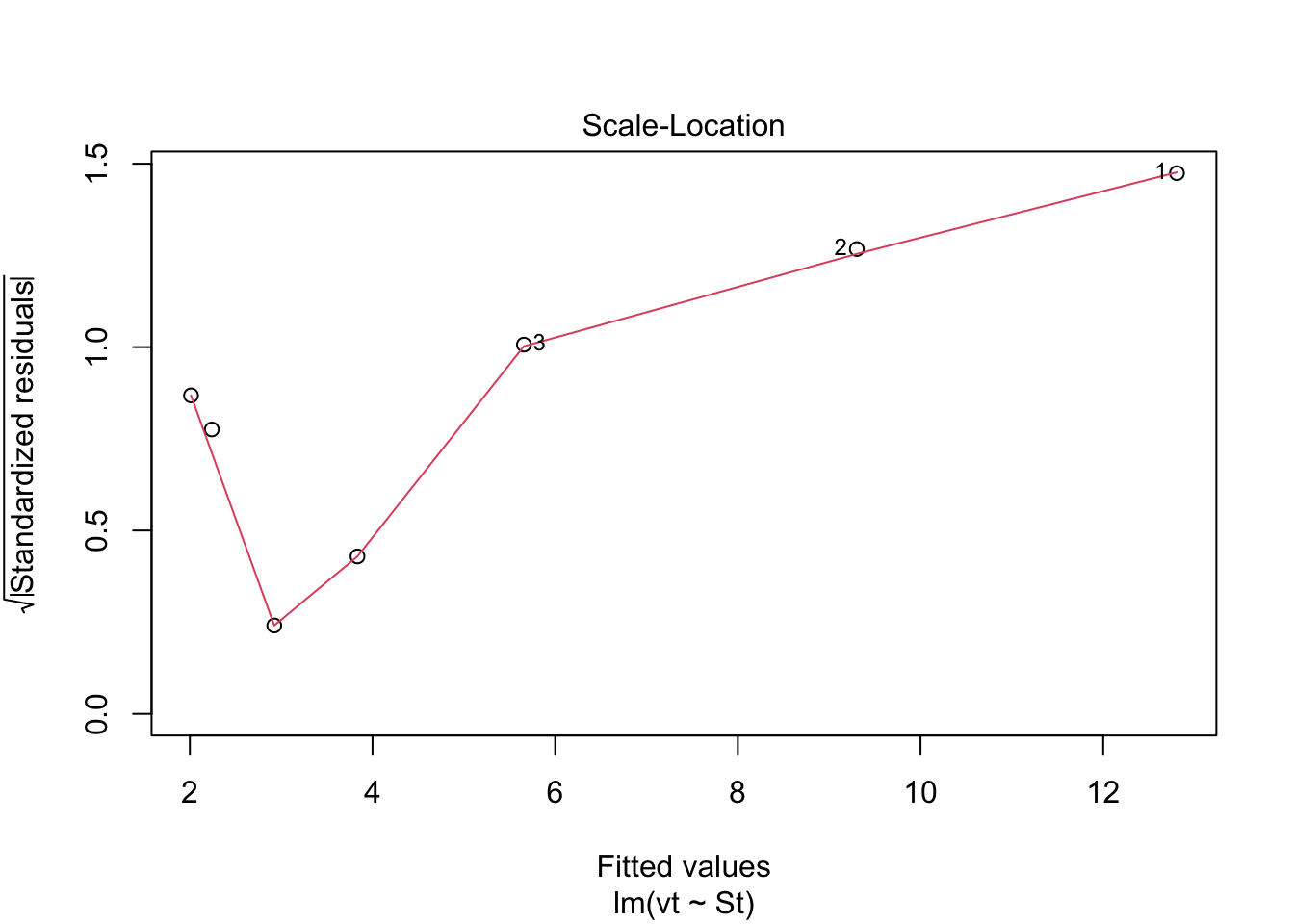

plot(model.lm,  which = 3, ask = FALSE)

Check: Variability is a bit more variable.

8.10.6 Step 6. Test for bias

# To test for bias, review plot of  residuals

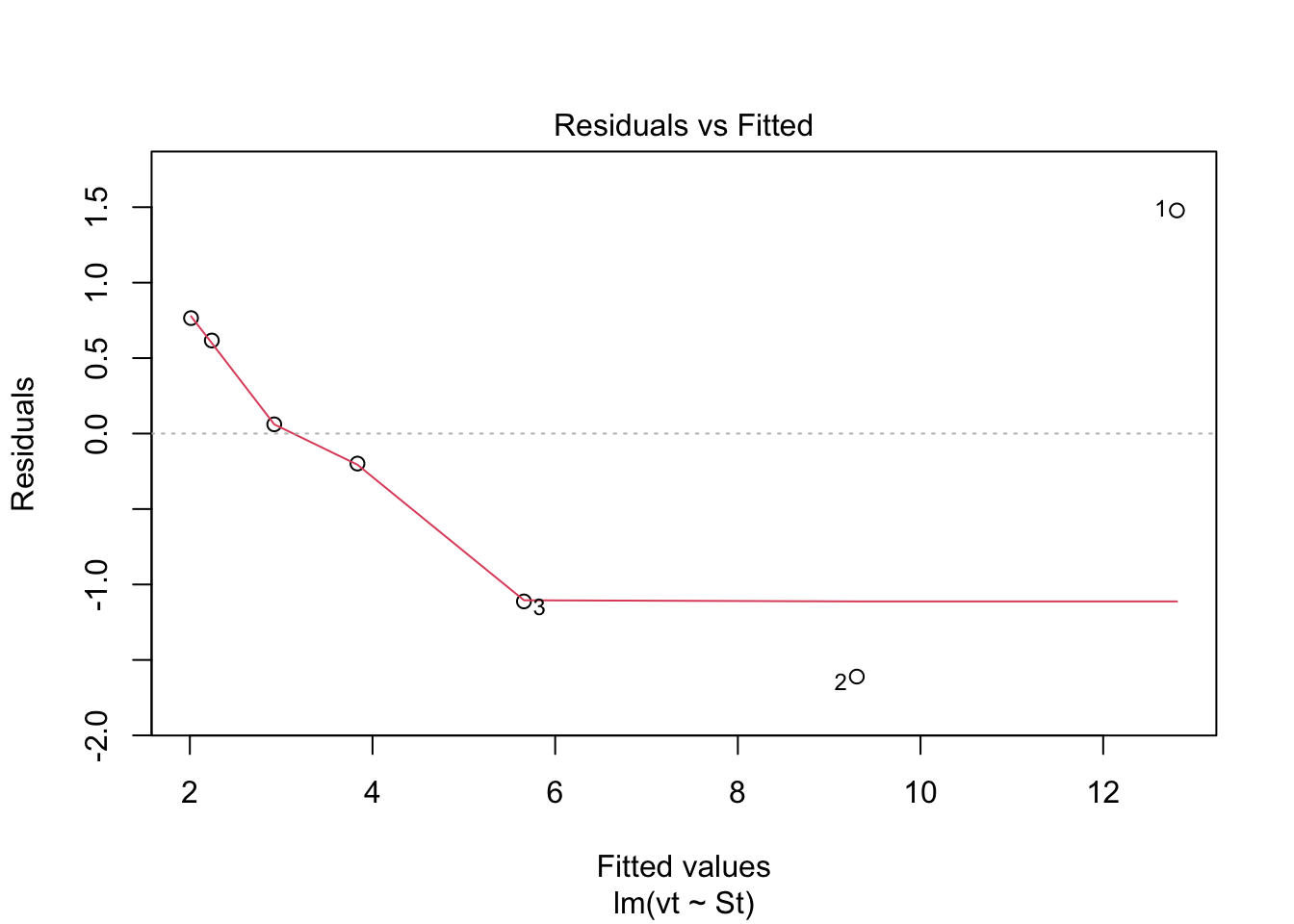

plot(model.lm,  which = 1, ask = FALSE)

Check: Variability above and below 0 does not appear random.

8.10.7 Step 7. Test for Normality

# To test for normality, review plot

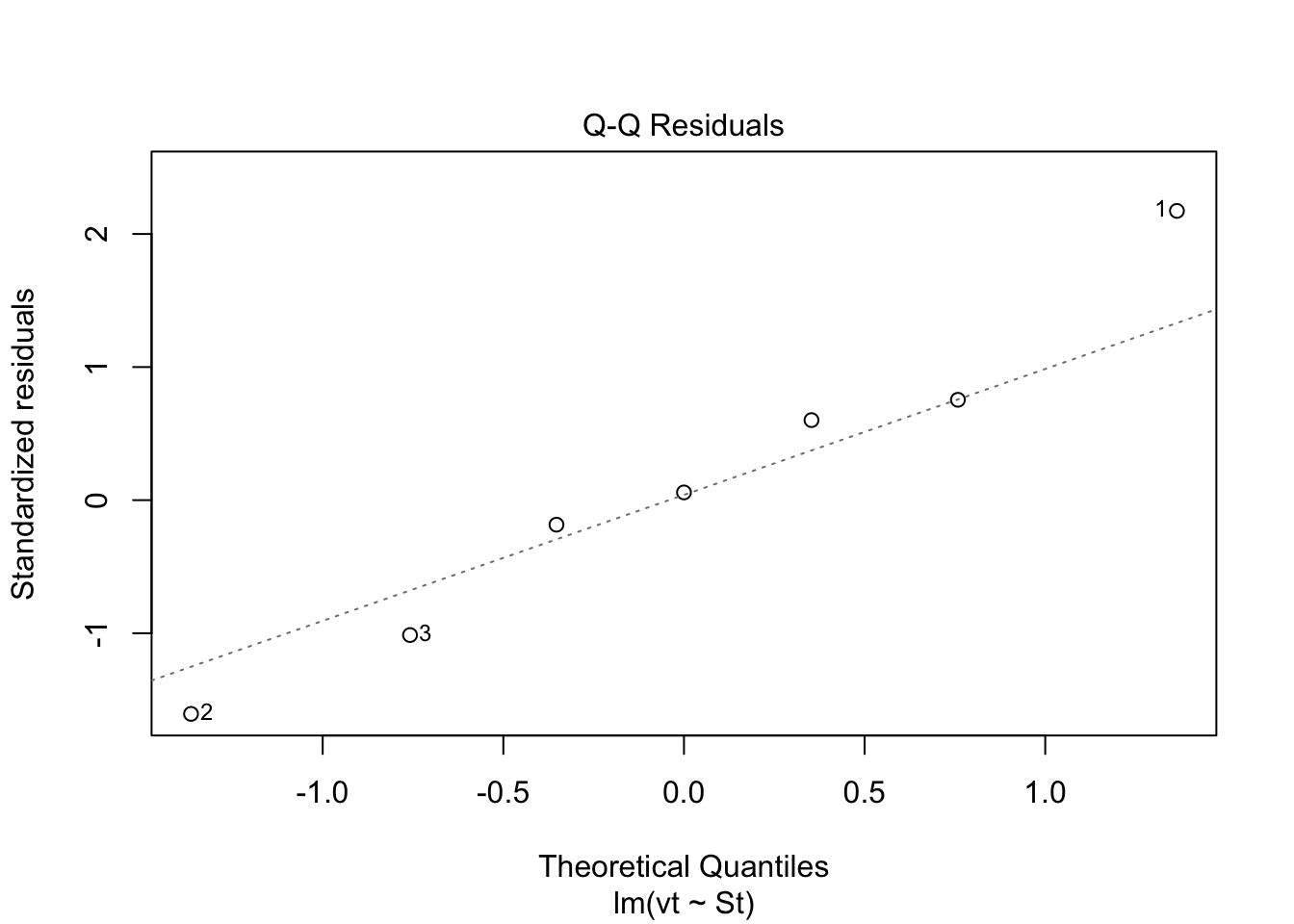

plot(model.lm,  which = 2, ask = FALSE)

Check: Residuals are not normally distributed. Questionable!!

8.10.8 Application

The workflow provides confidence of a reasonable linear regression model. The final steps are to create a plot with uncertainity bounds and the ability to predict a value and associated uncertainity.

###Workflow:

Confidence intervals are computed using the predict command:

predict(lmheight, newdata = data.frame(age=22.5), interval = “confidence”, level = 0.95)

Prediction intervals are computed as follows:

predict(lmheight, newdata = data.frame(age=22.5), interval = “prediction”, level = 0.95)

Prediction intervals are always greater. While it includes the uncertainity in the regression uncertainties in the slope and intercept, it also includes the unexplained variability in y.

# Use model to create prediction intervals

model.predict <- predict(model.lm, interval = "predict")
## Warning in predict.lm(model.lm, interval = "predict"): predictions on current data refer to _future_ responses
# Use model to create confidence intervals

model.confidence <- predict(model.lm, interval = "confidence")
colnames(model.confidence) <- c("cfit", "clwr", "cupr") #rename columns


# Create dataset that merges dataset

data.all <- cbind(data.ex,model.predict, model.confidence)

# Create ggplot

p1 <- ggplot(data.all, aes(x = St, y = vt)) +
  geom_point() + # adds points
  geom_line(aes(y=lwr), col = "coral2", linetype = "dashed") + #lower prediction interval
  geom_line(aes(y=upr), col = "coral2", linetype = "dashed") +
  geom_ribbon(aes(ymin=clwr,ymax=cupr),alpha=0.3) +  # confidence band
  geom_line(aes(y=fit), col = "blue") +  # confidence band
  theme_cowplot() +
  ylab("1/v") +
  xlab("1/S")

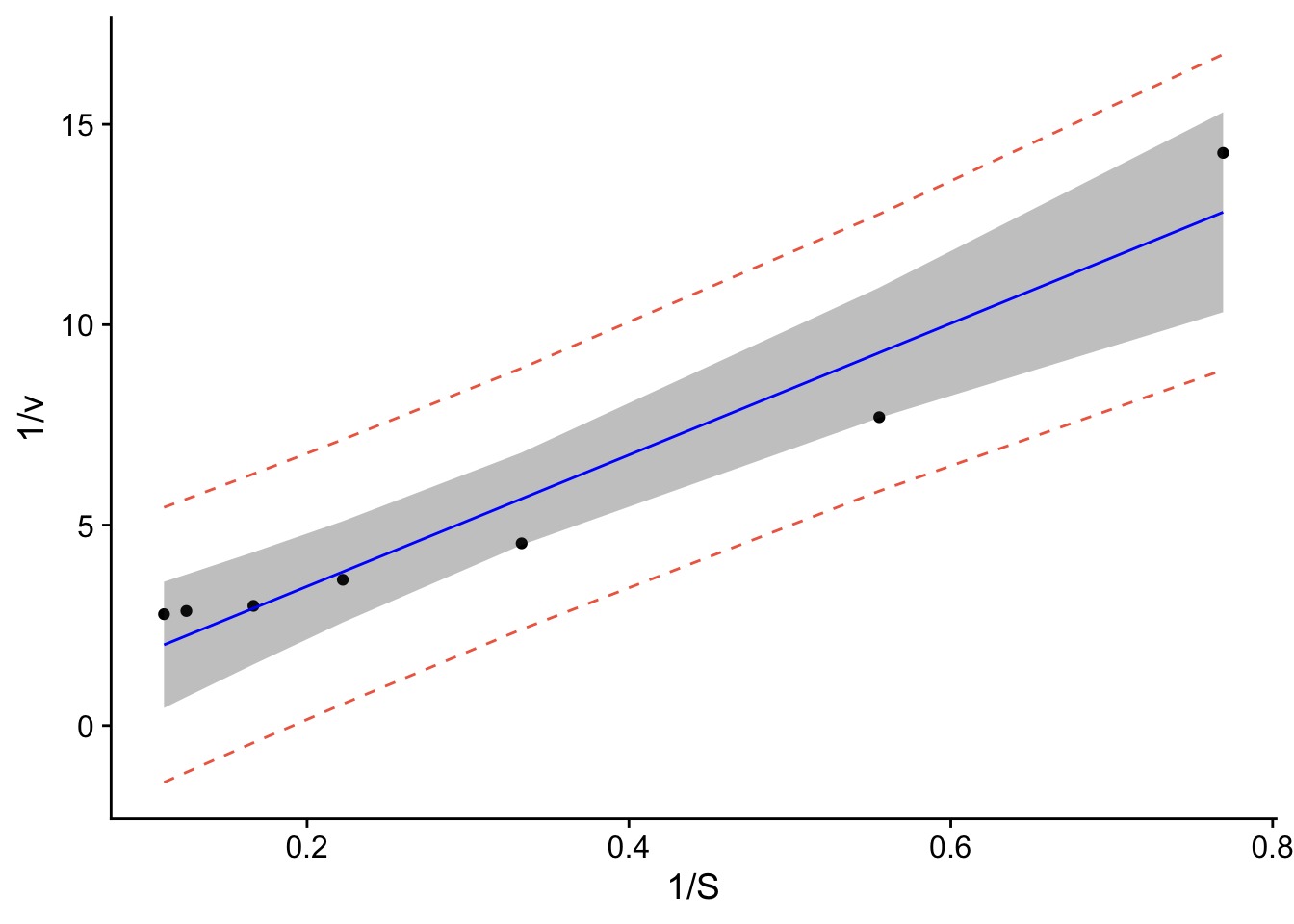

p1

data.all$fit <- 1/data.all$fit
data.all$lwr <- 1/data.all$lwr
data.all$upr <- 1/data.all$upr
data.all$clwr <- 1/data.all$clwr
data.all$cupr <- 1/data.all$cupr

p <- ggplot(data.all, aes(x = S, y = v)) +
  geom_point() + # adds points
  geom_line(aes(y=lwr), col = "coral2", linetype = "dashed") + #lower prediction interval
  geom_line(aes(y=upr), col = "coral2", linetype = "dashed") +
  geom_ribbon(aes(ymin=clwr,ymax=cupr),alpha=0.3) +  # confidence band
  geom_line(aes(y=fit), col = "blue") +  # confidence band
  theme_cowplot() +
  ylab("v") +
  xlab("S") +
  scale_y_continuous(breaks=seq(0,0.8,.2)) + # changes scale to min and max with prescribed spacing
  scale_x_continuous(breaks=seq(0,9,1)) +
  ylim(0,0.8)
## Scale for y is already present.
## Adding another scale for y, which will replace the existing scale.

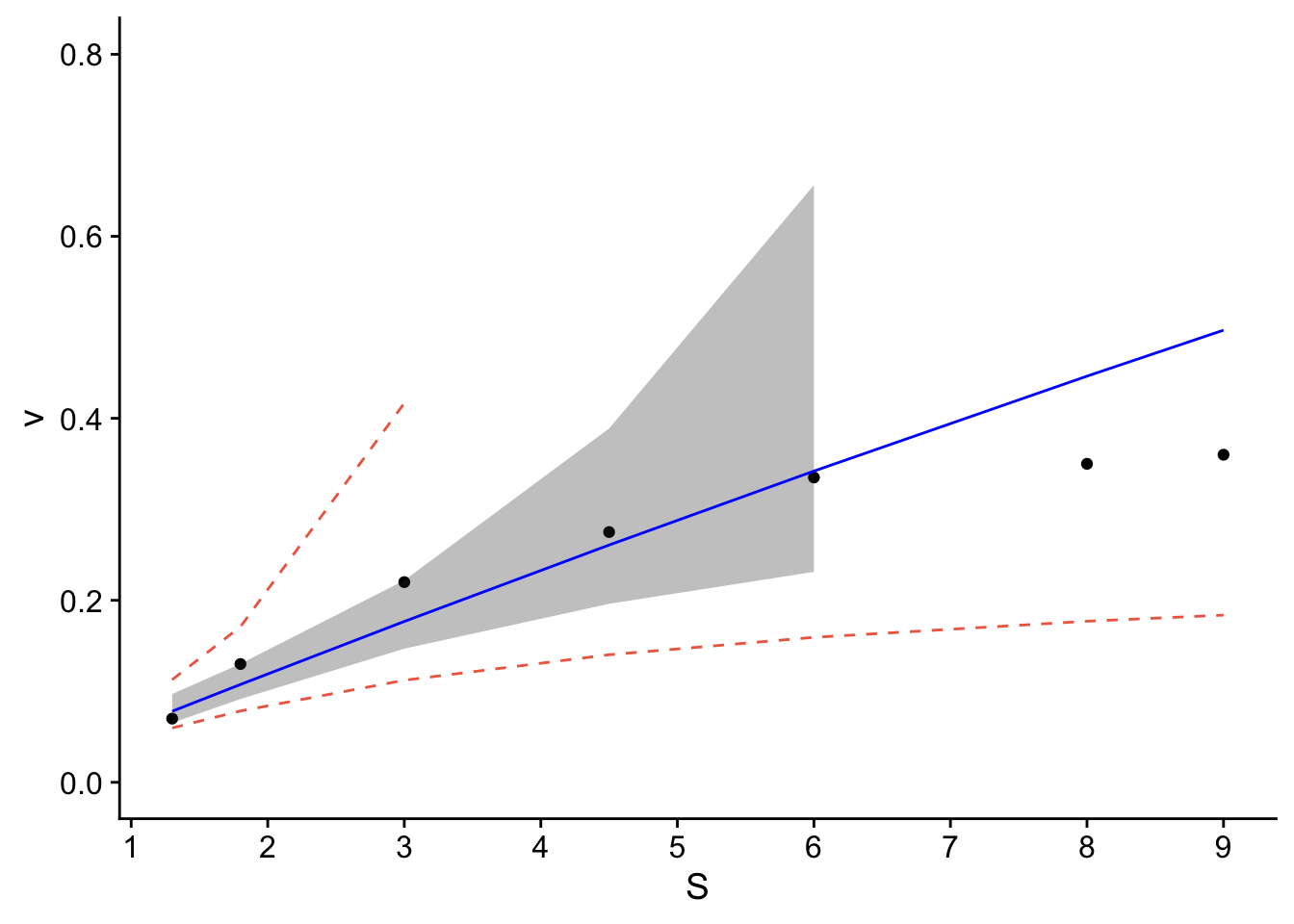

p
## Warning: Removed 4 rows containing missing values or values outside the scale range
## (`geom_line()`).

8.11 Take 2, try second order!

8.11.1 Step 4. Linear model

Create linear model using lm function. * Assess assumption 1 - review t-values from linear model summary. If the slope and intercept values have resulting |t| > 2, then they are significant. - review leverage/influence of data points on regression. When data points have high leverage, one of 3 options come into play: (1) Someone made a recording error, (2) Someone made a fundamental mistake collecting the observation; or (3) The data point is perfectly valid, in which case the model cannot account for the behavior

# Create linear model, 1st order Michaelis Menton

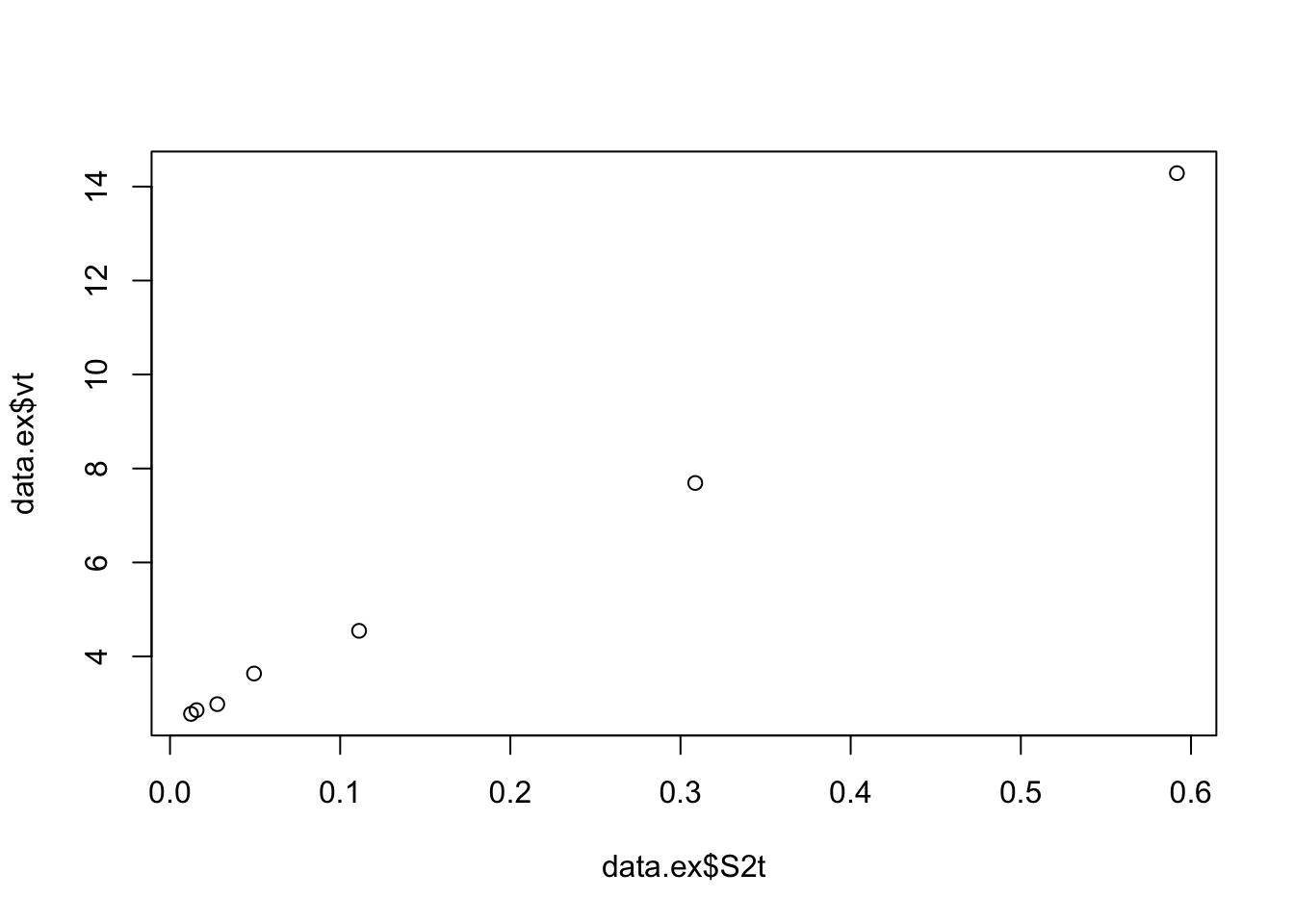

plot(data.ex$S2t,data.ex$vt)

model.lm <- lm(vt~S2t, data=data.ex)
summary(model.lm)
##
## Call:
## lm(formula = vt ~ S2t, data = data.ex)
##
## Residuals:
##         1         2         3         4         5         6         7
##  0.371400 -0.737166 -0.056662  0.230297 -0.002375  0.105165  0.089340
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   2.4492     0.1877   13.05 4.71e-05 ***
## S2t          19.3760     0.7310   26.51 1.43e-06 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.389 on 5 degrees of freedom
## Multiple R-squared:  0.9929, Adjusted R-squared:  0.9915
## F-statistic: 702.7 on 1 and 5 DF,  p-value: 1.428e-06
vm <- 1/model.lm$coefficients[1]
ks <- sqrt(vm*model.lm$coefficients[2])
vm
## (Intercept)
##    0.408292
ks
## (Intercept)
##    2.812661

Check: |t-values| >> 2, looks better The half-saturation constant and vm are also consistent with the data.

# review leverage/influence of data points on regression. Use plot of Cook's D, evaluate subset of CooksD above threshold, and evaluate DFFITS (another influence diagnostic)

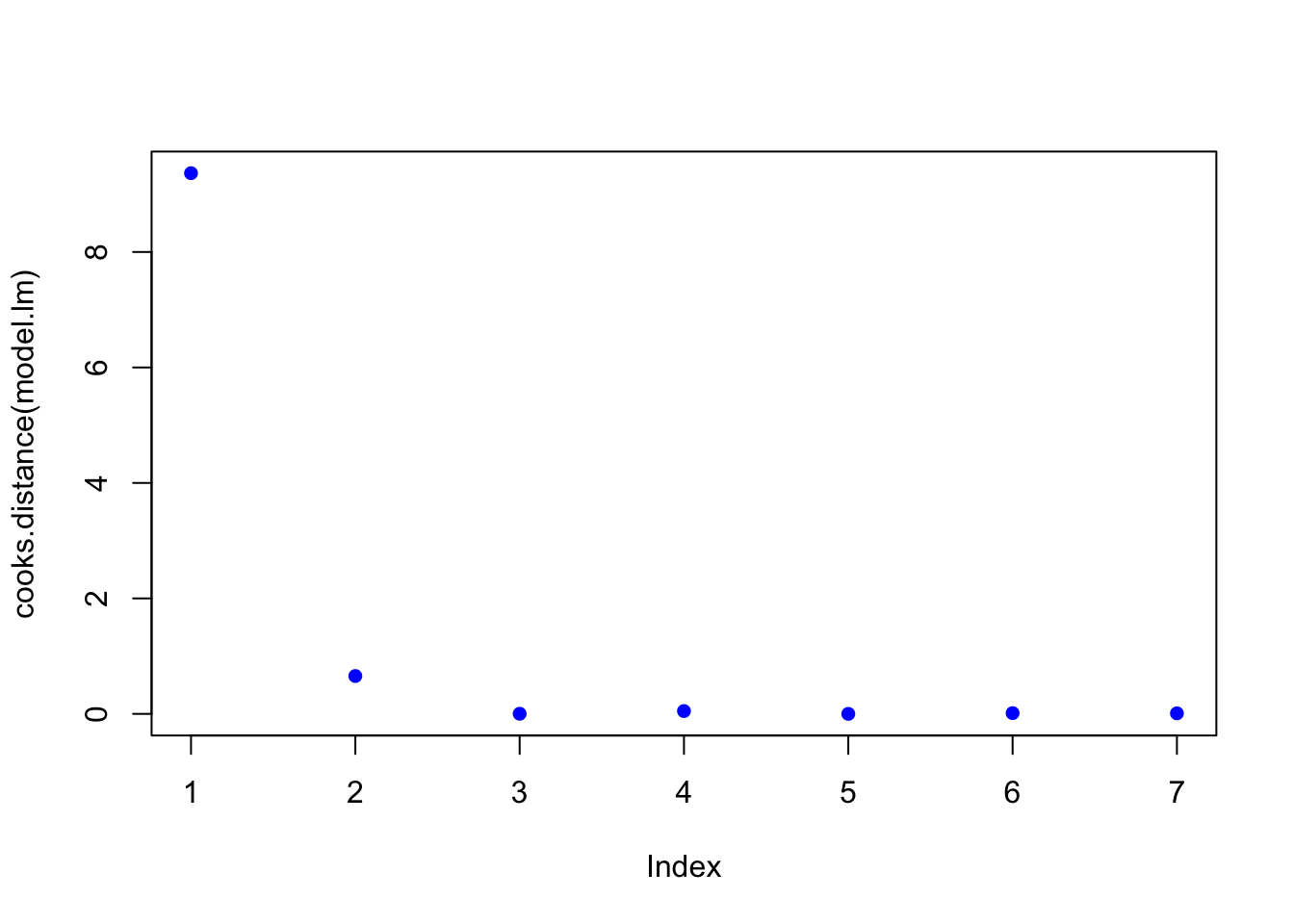

plot(cooks.distance(model.lm), pch = 16, col = "blue") #Plot the Cooks Distances.

n <- length(model.lm$residuals)
p <- length(model.lm$coefficients)
subset(cooks.distance(model.lm), cooks.distance(model.lm) > qf(0.1, p, n - p, lower.tail = FALSE)) # determines if there are any flagged observations from CooksD
##        1
## 9.365224
subset(dffits(model.lm), dffits(model.lm) > 2 * sqrt(p / n)) # determines if there are any flagged observations from DFFITS
##        1
## 13.90953

For SLR with more than about 30 observations, the critical value for Di would be about 2.4. In the example above, observation 1 was identified as having higher influence for both Cooks and DDFITS. Consider options 1-3 described in workflow, but also intercept was questionable.

8.11.2 Step 5. Test for homoscedasaticity

# Here, the which variable provides the ability to create 4 plots of interest: "Residuals vs Fitted", "Normal Q-Q", "Scale-Location", "Cook's distance", "Residuals vs Leverage"

# To test for homoscedasaticity, review plot of standardized residuals

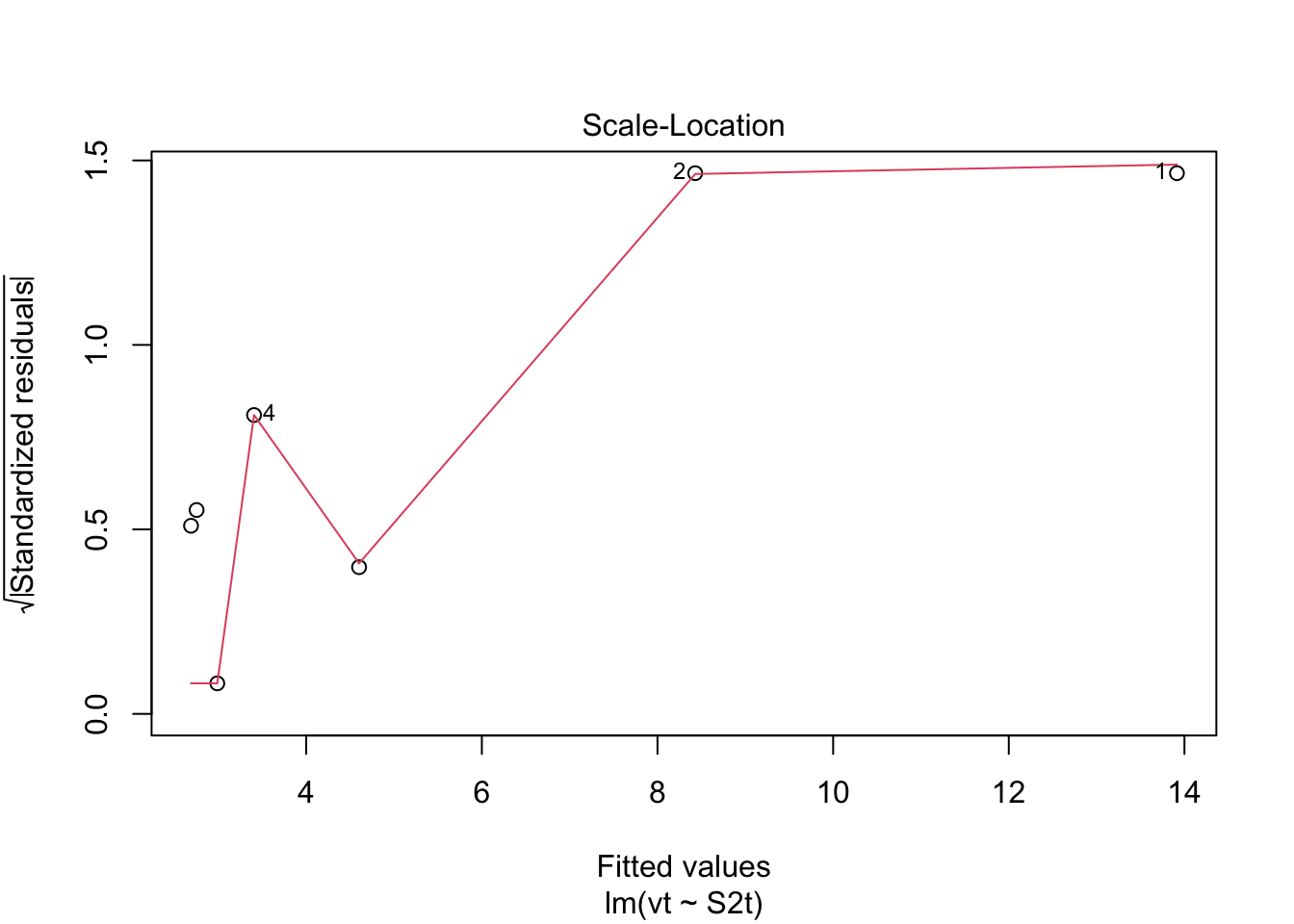

plot(model.lm,  which = 3, ask = FALSE)

Check: Variability is variable.

8.11.3 Step 6. Test for bias

# To test for bias, review plot of  residuals

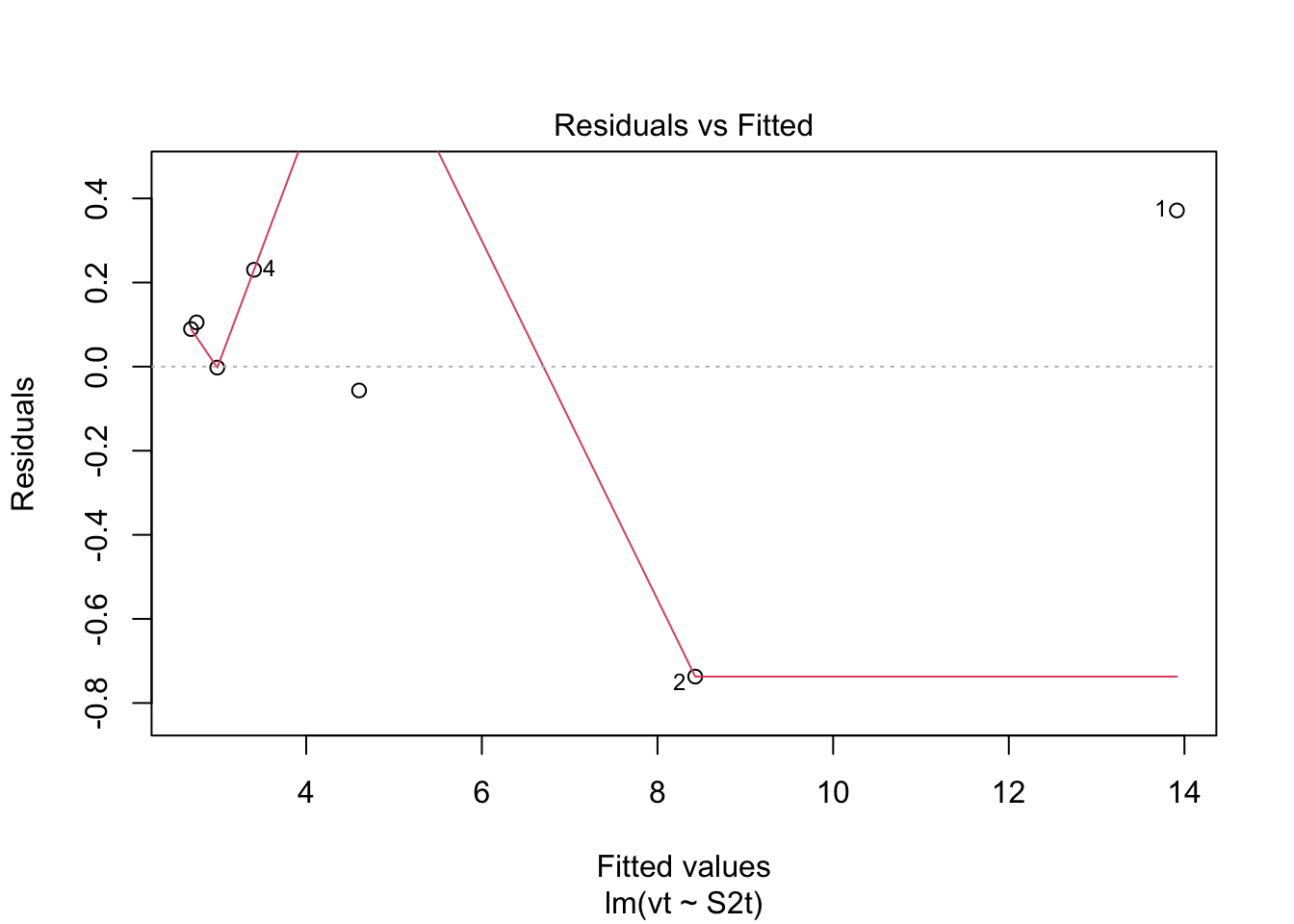

plot(model.lm,  which = 1, ask = FALSE)

Check: Variability above and below 0 somewhat random.

8.11.4 Step 7. Test for Normality

# To test for normality, review plot

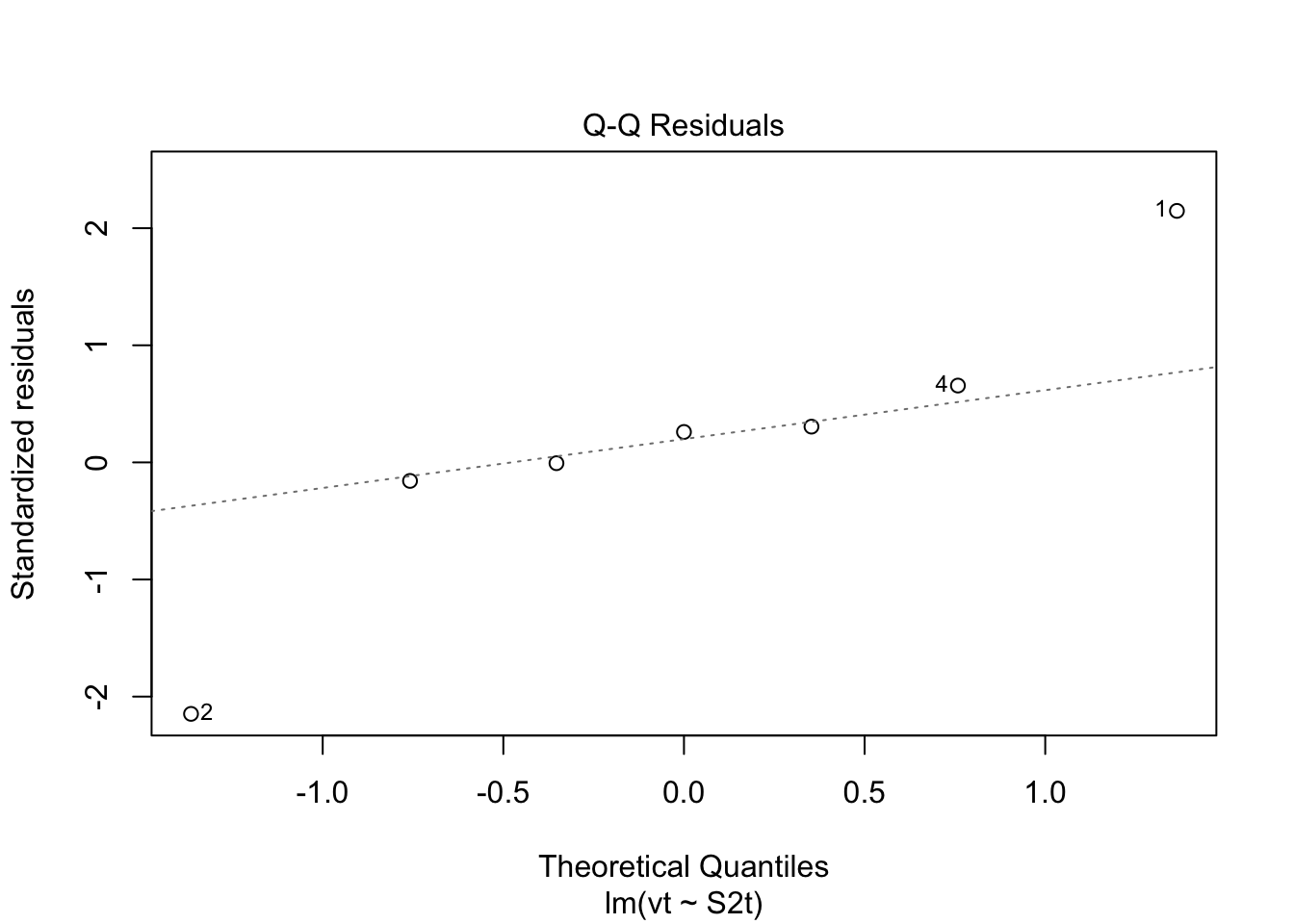

plot(model.lm,  which = 2, ask = FALSE)

Check: Residuals are not normally distributed. Questionable.

8.11.5 Application

The workflow provides confidence of a reasonable linear regression model. The final steps are to create a plot with uncertainity bounds and the ability to predict a value and associated uncertainity.

###Workflow:

Confidence intervals are computed using the predict command:

predict(lmheight, newdata = data.frame(age=22.5), interval = “confidence”, level = 0.95)

Prediction intervals are computed as follows:

predict(lmheight, newdata = data.frame(age=22.5), interval = “prediction”, level = 0.95)

Prediction intervals are always greater. While it includes the uncertainity in the regression uncertainties in the slope and intercept, it also includes the unexplained variability in y.

# Use model to create prediction intervals

model.predict <- predict(model.lm, interval = "predict")
## Warning in predict.lm(model.lm, interval = "predict"): predictions on current data refer to _future_ responses
# Use model to create confidence intervals

model.confidence <- predict(model.lm, interval = "confidence")
colnames(model.confidence) <- c("cfit", "clwr", "cupr") #rename columns


# Create dataset that merges dataset

data.all <- cbind(data.ex,model.predict, model.confidence)

# Create ggplot

p1 <- ggplot(data.all, aes(x = S2t, y = vt)) +
  geom_point() + # adds points
  geom_line(aes(y=lwr), col = "coral2", linetype = "dashed") + #lower prediction interval
  geom_line(aes(y=upr), col = "coral2", linetype = "dashed") +
  geom_ribbon(aes(ymin=clwr,ymax=cupr),alpha=0.3) +  # confidence band
  geom_line(aes(y=fit), col = "blue") +  # confidence band
  theme_cowplot() +
  ylab("1/v") +
  xlab("1/S^2")

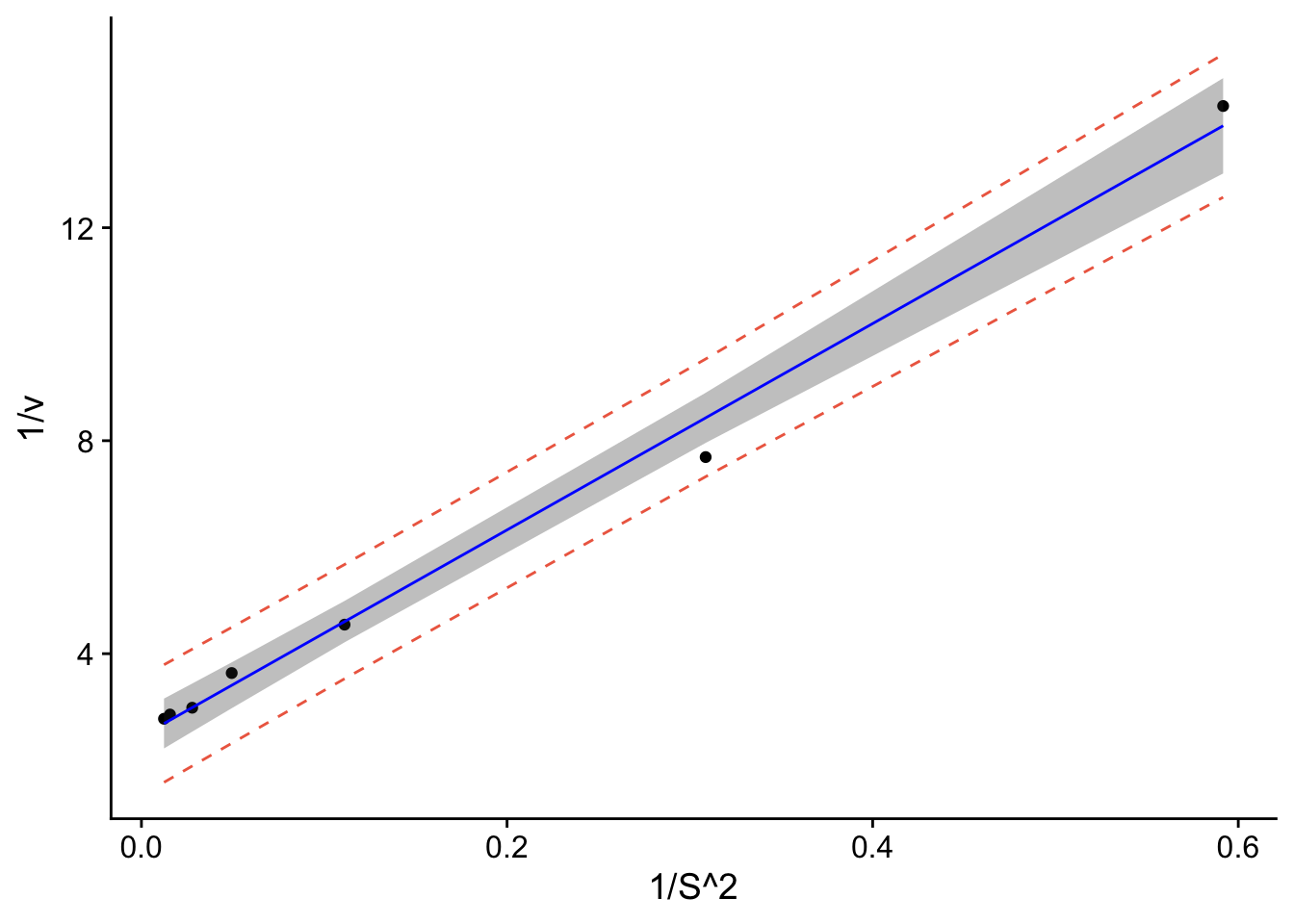

p1

data.all$fit <- (1/(data.all$fit))
data.all$lwr <- (1/(data.all$lwr))
data.all$upr <- (1/(data.all$upr))
data.all$clwr <- (1/(data.all$clwr))
data.all$cupr <- (1/(data.all$cupr))

p <- ggplot(data.all, aes(x = S, y = v)) +
  geom_point() + # adds points
  geom_line(aes(y=lwr), col = "coral2", linetype = "dashed") + #lower prediction interval
  geom_line(aes(y=upr), col = "coral2", linetype = "dashed") +
  geom_ribbon(aes(ymin=clwr,ymax=cupr),alpha=0.3) +  # confidence band
  geom_line(aes(y=fit), col = "blue") +  # confidence band
  theme_cowplot() +
  ylab("v") +
  xlab("S") +
  scale_y_continuous(breaks=seq(0,0.4,.1)) + # changes scale to min and max with prescribed spacing
  scale_x_continuous(breaks=seq(0,9,1)) +
  ylim(0,0.8)
## Scale for y is already present.
## Adding another scale for y, which will replace the existing scale.

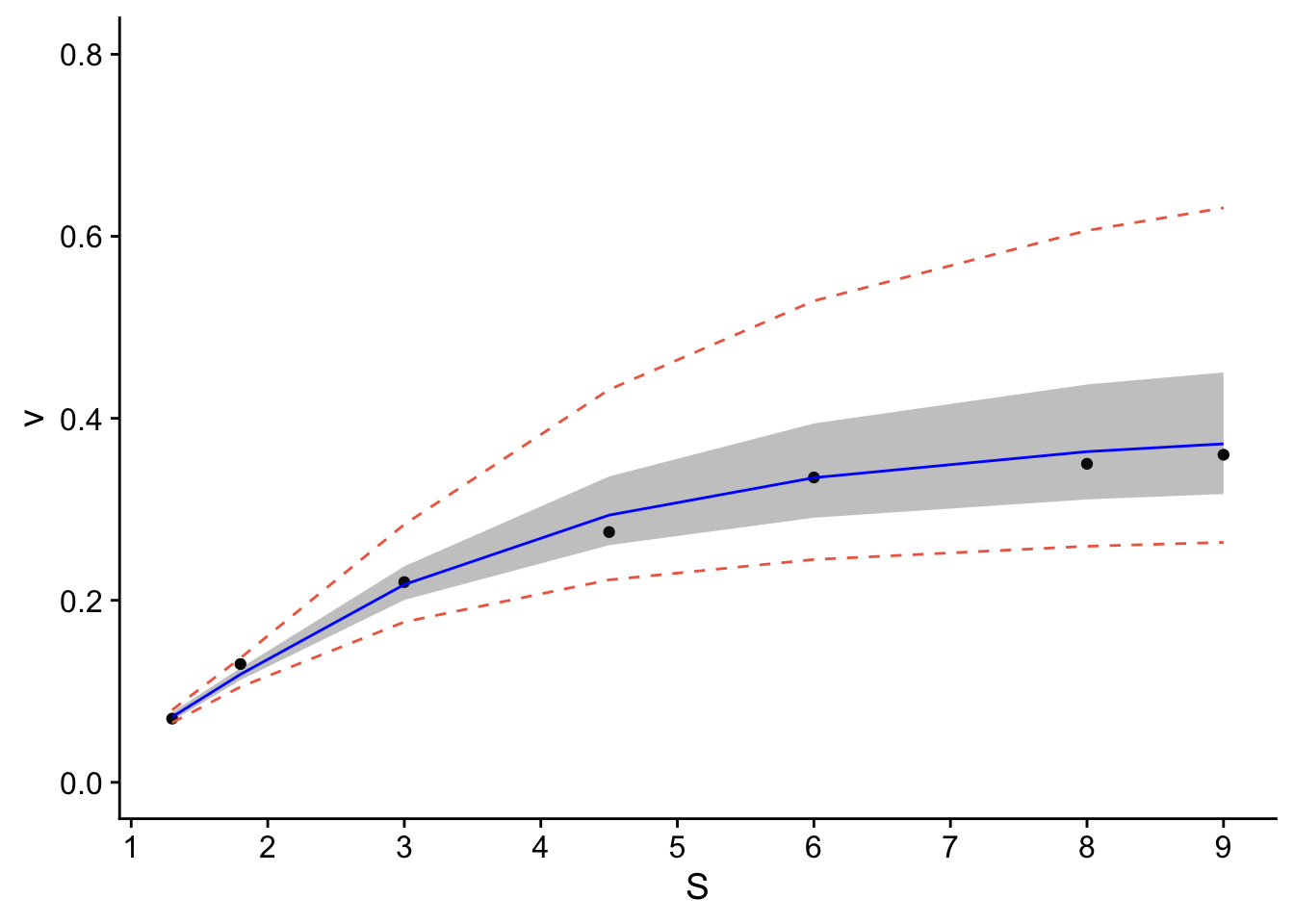

p

The resulting plot contains the confidence and prediction intervals over the range of x-values. Is transforming the data the best approach? The resulting transformation resulted in a linear model. Were the remainder of the tests valid? Not necessarily for the normality. The other approach would be to fit the data with a non-linear best-fit curve. Regardless, you can see how you’d apply linear regression to data.
